For companies expanding into global markets, a product manual is more than just a user guide—it is a legal instrument of warranty. Among its most critical components are the small logos and symbols scattered throughout the pages.
Managing these assets is not about simple aesthetics; it is about graphic integrity. A compliance mark that is poorly rendered, incorrectly scaled, or off-color is not just a “design flaw”—it is a legal liability that can halt your global distribution.
Compliance Marks: Legal Commitments, Not Just Icons
Regulatory compliance marks are mandatory symbols required by international law. They represent a legal pact between the manufacturer and the regulatory bodies of the target country.
Key Assets to Manage

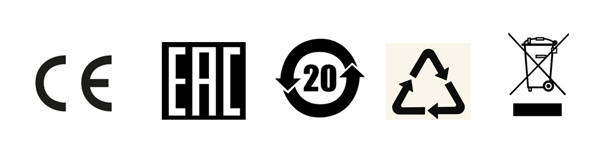

- Certification Marks: Mandatory for market entry (e.g., CE, EAC, FCC, KC).
- Environmental/Waste Marks: Required for sustainability compliance (e.g., China RoHS, WEEE).
- Region-Specific Symbols: Mandatory icons for specific jurisdictions like the EU or Eurasia.
The Audit Criteria
Regulatory bodies strictly inspect four key factors: Presence, Size, Shape, and Placement.
The Cost of Non-Compliance
A discrepancy as small as 0.1mm can trigger catastrophic risks:
- Customs Rejection & Market Delays: Products can be seized at the border if manual symbols fail to meet technical standards.
- Legal Disputes & Recalls: Missing or illegible mandatory marks can lead to government-mandated recalls and massive punitive fines.
- Erosion of Brand Trust: Inconsistency in technical documentation signals a lack of professional rigor to global partners.
Hansem Global’s Expertise: The 3 Pillars of Compliance Mark Integrity
With 35 years of experience partnering with the world’s largest manufacturers, Hansem Global adheres to three rigorous principles to eliminate these risks at the source.
Pillar 1: [Size] Precision Down to 0.1mm
Every mark must meet or exceed the minimum size defined by specific regulations.
The Global Standard: Following ISO 3864-3, we ensure that all safety and regulatory marks are scaled correctly from a unified master template (typically 70mm) to maintain absolute legibility.
Risk Mitigation: We cross-reference every asset against a global database of legal minimums to ensure 100% compliance in every localized version.
Pillar 2: [Shape & Color] Safeguarding Brand and Legal Identity
The geometry and color of a compliance mark must remain inviolate. Even a slight distortion can invalidate the mark’s legal standing.
Rigorous Drafting Standards: We follow precise drafting rules for angles, border thickness, and interior proportions.
Asset Integrity: By managing all marks as vector files (AI, SVG), we guarantee crisp, high-fidelity rendering at any scale, preventing the “pixelation risk” of raster images.
Pillar 3: [Placement] Optimized Visibility for Global Users
A mark’s effectiveness is determined by its environment.
Clear Zone Requirements: We enforce “Clear Zones” around every mark to prevent interference from text or other graphics.
Template Governance: Using standardized layout templates, we ensure consistent and compliant placement across 50+ languages.
Strategic Execution: Automated Verification Over Manual Inspection
Manually inspecting thousands of pages across multiple languages is not just inefficient—it is high-risk. Hansem Global utilizes advanced automation technology to replace human error with digital precision.
Centralized Regulatory Database (DB)
We maintain a dynamic DB of global mark specifications, tailored by region, country, and product type.
| Mark Name | Symbol | Compliance Requirements | Applied Width (mm) | Applied Height (mm) | Applied Languages |
|---|---|---|---|---|---|
| China RoHS |  | Mandatory: Min. 5mm (W/H) | 7.15 | 6.32 | |
| WEEE |  | Recommended: 10x10mm (for Visibility) | 6.1 | 9.44 | |
| TP_BY |  | Fixed: 6.4mm(W) x 5.0mm(H) / K100 | 7.63 | 5.78 | |
| EAC |  | Mandatory: Min. 5mm (W/H) | 5 | 5 | |
| Recycling |  | Internal Std: 7~8mm / Single Color | 7.86 | 7 | |
| CE |  | Legal: Vertical height min. 5mm) | 7.96 | 5.69 |
Automated QA System
The system generates detailed verification reports, documenting targeted vs. actual dimensions for every language to ensure 100% regulatory compliance.
| Language | Symbol | Compliance Criteria | Targeted Dim.(mm) W / H | Language Target/Except | Applied | Actual Dim. (mm) W / H | Result Status |
|---|---|---|---|---|---|---|---|
| ENG |  | Height Min. 6mm (Reduced for 2021 QSG Simplification) | 7.22 / 6.00 | All / [None] | TRUE | 7.22 / 6.00 | Success |
| ENG | | No specific regulation; 10x10mm recommended | 6.10 / 9.44 | All / [Exceptions] | TRUE | 6.10 / 9.44 | Success |
| FRE | | Height Min. 6mm (Reduced for 2021 QSG Simplification) | 7.22 / 6.00 | All / [None] | TRUE | 7.22 / 6.00 | Success |
| FRE | | No specific regulation; 10x10mm recommended | 6.10 / 9.44 | All / [Exceptions] | TRUE | 6.10 / 9.44 | Success |
| ARA | | Height Min. 6mm (Reduced for 2021 QSG Simplification) | 7.22 / 6.00 | All / [None] | TRUE | 7.22 / 6.00 | Success |
| ARA | | No specific regulation; 10x10mm recommended | 6.10 / 9.44 | All / [Exceptions] | TRUE | 6.10 / 9.44 | Success |
This report exemplifies our automated QA system in action, where compliance mark dimensions are digitally verified for transparency and 100% legal accuracy across all target languages.
Case 1: Dimension Non-Compliance
“Detection of Scaling Errors:” This case illustrates the system flagging a logo that, while present, fails to meet the mandatory minimum size requirements. Our automated audit captures even the slightest discrepancies in width and height to ensure full regulatory compliance.
| Targeted Dim. (mm) | Language | Applied | Actual Dim. (mm) | Result |
|---|---|---|---|---|
| W: 20.3 / H: 3.11 | Cover | TRUE | W: 21.31 / H: 3.26 | Fail |
Case 2: Missing Required Asset
Identification of Missing Assets:” In this scenario, the system identifies a critical omission where a required compliance mark was not applied to the localized layout. This proactive check prevents the significant legal risks associated with missing regulatory information in specific regions.
| Targeted Dim. (mm) | Language | Applied | Actual Dim. (mm) | Result |
|---|---|---|---|---|
| W: 5.37 / H: 5.37 | Ukr (Ukraine) | FALSE | – / – | Fail |
Conclusion: Integrity is Your Competitive Advantage
In the global marketplace, the precision of your compliance marks is a reflection of your brand’s commitment to quality. Managing these assets is not just about desktop publishing; it is about proactive risk mitigation.
Partner with Hansem Global to leverage our 35 years of technical expertise and automated QA solutions. Let us protect your brand and ensure your products move seamlessly across borders.
